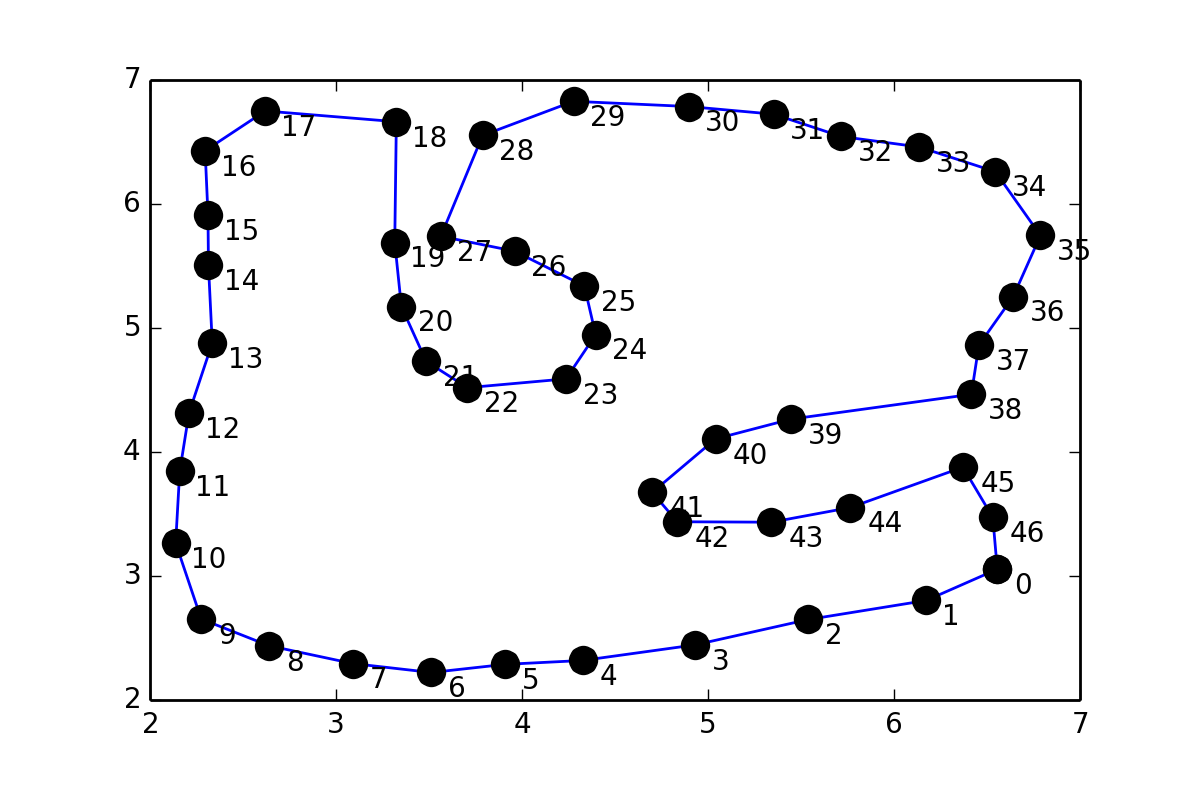

I have a set of points pts which form a loop and it looks like this:
This is somewhat similar to 31243002, but instead of putting points in between pairs of points, I would like to fit a smooth curve through the points (coordinates are given at the end of the question), so I tried something similar to scipy documentation on Interpolation:
values = pts tck = interpolate.splrep(values[:,0], values[:,1], s=1) xnew = np.arange(2,7,0.01) ynew = interpolate.splev(xnew, tck, der=0)
but I get this error:
ValueError: Error on input data
Is there any way to find such a fit?
Coordinates of the points:
pts = array([[ 6.55525 , 3.05472 ], [ 6.17284 , 2.802609], [ 5.53946 , 2.649209], [ 4.93053 , 2.444444], [ 4.32544 , 2.318749], [ 3.90982 , 2.2875 ], [ 3.51294 , 2.221875], [ 3.09107 , 2.29375 ], [ 2.64013 , 2.4375 ], [ 2.275444, 2.653124], [ 2.137945, 3.26562 ], [ 2.15982 , 3.84375 ], [ 2.20982 , 4.31562 ], [ 2.334704, 4.87873 ], [ 2.314264, 5.5047 ], [ 2.311709, 5.9135 ], [ 2.29638 , 6.42961 ], [ 2.619374, 6.75021 ], [ 3.32448 , 6.66353 ], [ 3.31582 , 5.68866 ], [ 3.35159 , 5.17255 ], [ 3.48482 , 4.73125 ], [ 3.70669 , 4.51875 ], [ 4.23639 , 4.58968 ], [ 4.39592 , 4.94615 ], [ 4.33527 , 5.33862 ], [ 3.95968 , 5.61967 ], [ 3.56366 , 5.73976 ], [ 3.78818 , 6.55292 ], [ 4.27712 , 6.8283 ], [ 4.89532 , 6.78615 ], [ 5.35334 , 6.72433 ], [ 5.71583 , 6.54449 ], [ 6.13452 , 6.46019 ], [ 6.54478 , 6.26068 ], [ 6.7873 , 5.74615 ], [ 6.64086 , 5.25269 ], [ 6.45649 , 4.86206 ], [ 6.41586 , 4.46519 ], [ 5.44711 , 4.26519 ], [ 5.04087 , 4.10581 ], [ 4.70013 , 3.67405 ], [ 4.83482 , 3.4375 ], [ 5.34086 , 3.43394 ], [ 5.76392 , 3.55156 ], [ 6.37056 , 3.8778 ], [ 6.53116 , 3.47228 ]])
Answers:
Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.
Method 1
Actually, you were not far from the solution in your question.
Using scipy.interpolate.splprep for parametric B-spline interpolation would be the simplest approach. It also natively supports closed curves, if you provide the per=1 parameter,

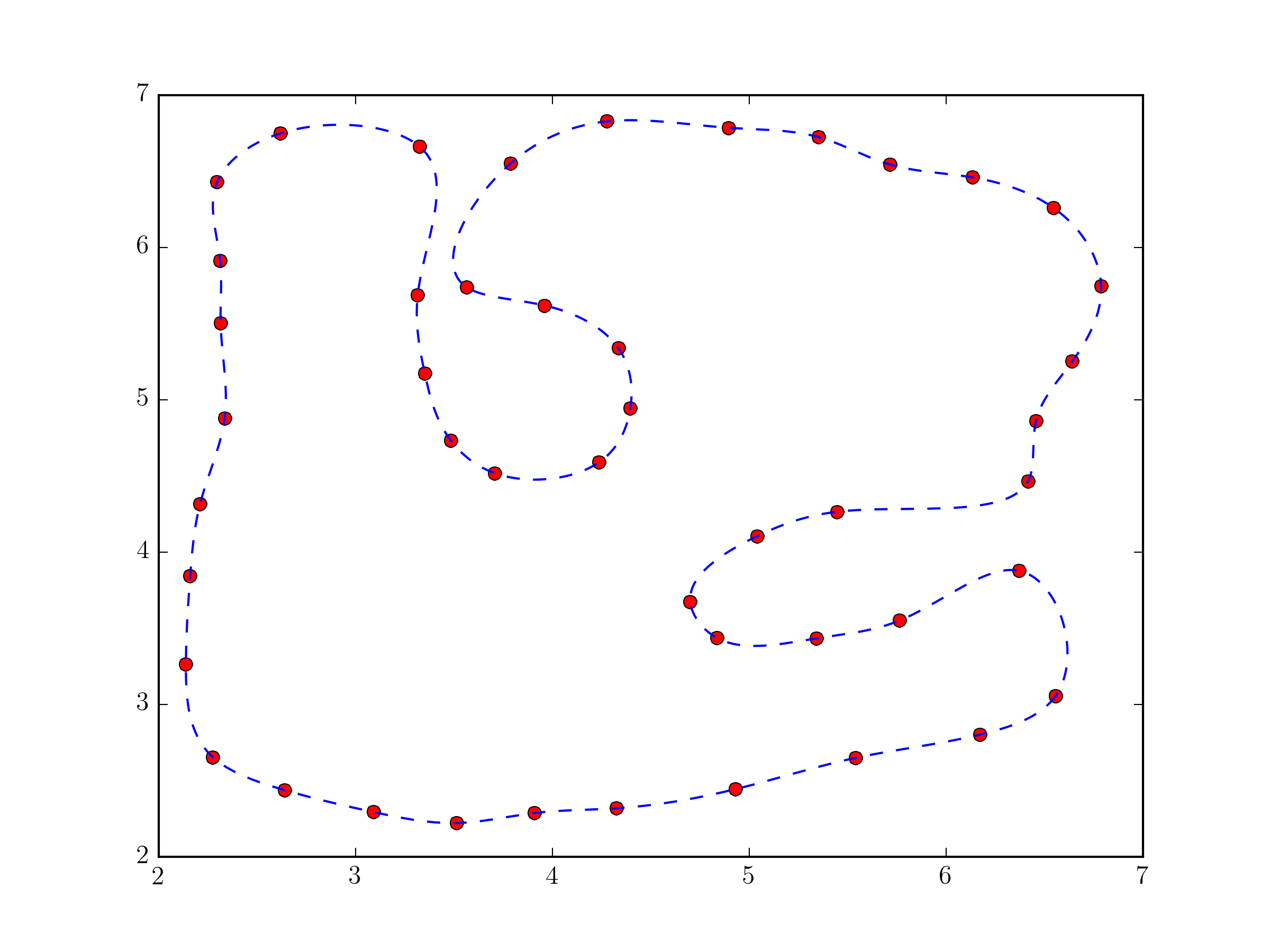

import numpy as np from scipy.interpolate import splprep, splev import matplotlib.pyplot as plt # define pts from the question tck, u = splprep(pts.T, u=None, s=0.0, per=1) u_new = np.linspace(u.min(), u.max(), 1000) x_new, y_new = splev(u_new, tck, der=0) plt.plot(pts[:,0], pts[:,1], 'ro') plt.plot(x_new, y_new, 'b--') plt.show()
Fundamentally, this approach not very different from the one in @Joe Kington’s answer. Although, it will probably be a bit more robust, because the equivalent of the i vector is chosen, by default, based on the distances between points and not simply their index (see splprep documentation for the u parameter).
Method 2
Your problem is because you’re trying to work with x and y directly. The interpolation function you’re calling assumes that the x-values are in sorted order and that each x value will have a unique y-value.
Instead, you’ll need to make a parameterized coordinate system (e.g. the index of your vertices) and interpolate x and y separately using it.
To start with, consider the following:

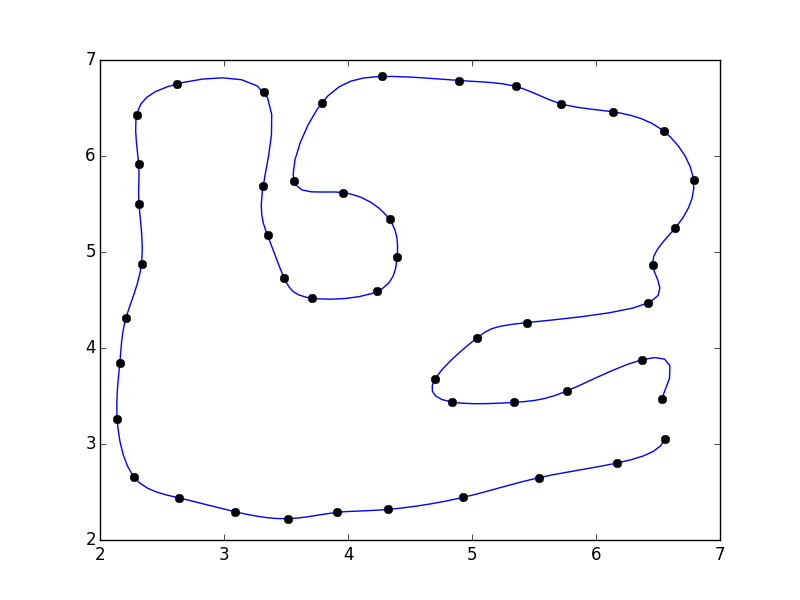

import numpy as np from scipy.interpolate import interp1d # Different interface to the same function import matplotlib.pyplot as plt #pts = np.array([...]) # Your points x, y = pts.T i = np.arange(len(pts)) # 5x the original number of points interp_i = np.linspace(0, i.max(), 5 * i.max()) xi = interp1d(i, x, kind='cubic')(interp_i) yi = interp1d(i, y, kind='cubic')(interp_i) fig, ax = plt.subplots() ax.plot(xi, yi) ax.plot(x, y, 'ko') plt.show()
I didn’t close the polygon. If you’d like, you can add the first point to the end of the array (e.g. pts = np.vstack([pts, pts[0]])
If you do that, you’ll notice that there’s a discontinuity where the polygon closes.

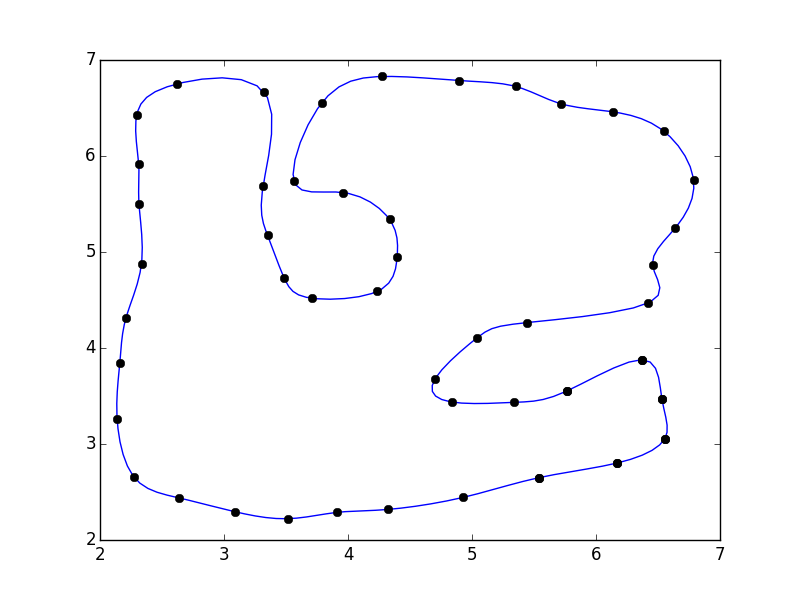

This is because our parameterization doesn’t take into account the closing of the polgyon. A quick fix is to pad the array with the “reflected” points:
import numpy as np from scipy.interpolate import interp1d import matplotlib.pyplot as plt #pts = np.array([...]) # Your points pad = 3 pts = np.pad(pts, [(pad,pad), (0,0)], mode='wrap') x, y = pts.T i = np.arange(0, len(pts)) interp_i = np.linspace(pad, i.max() - pad + 1, 5 * (i.size - 2*pad)) xi = interp1d(i, x, kind='cubic')(interp_i) yi = interp1d(i, y, kind='cubic')(interp_i) fig, ax = plt.subplots() ax.plot(xi, yi) ax.plot(x, y, 'ko') plt.show()
Alternately, you can use a specialized curve-smoothing algorithm such as PEAK or a corner-cutting algorithm.
Method 3

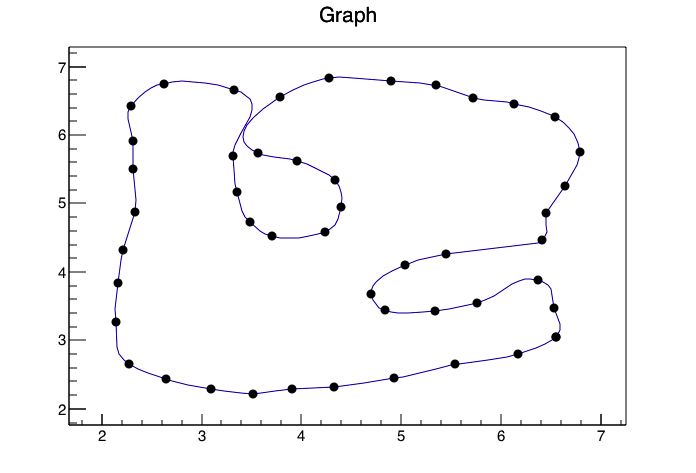

Using the ROOT Framework and the pyroot interface I was able to generate the following image
With the following code(I converted your data to a CSV called data.csv so reading it into ROOT would be easier and gave the columns titles of xp,yp)
from ROOT import TTree, TGraph, TCanvas, TH2F
c1 = TCanvas( 'c1', 'Drawing Example', 200, 10, 700, 500 )
t=TTree('TP','Data Points')
t.ReadFile('./data.csv')
t.SetMarkerStyle(8)
t.Draw("yp:xp","","ACP")
c1.Print('pydraw.png')
Method 4
To fit a smooth closed curve through N points you can use line segments with the following constraints:
- Each line segment has to touch its two end points (2 conditions per line segment)
- For each point the left and right line segment have to have the same derivative (2 conditions per point == 2 conditions per line segment)
To be able to have enough freedom for in total 4 conditions per line segment the equation of each line segment should be y = ax^3 + bx^2 + cx + d. (so the derivative is y’ = 3ax^2 + 2bx + c)
Setting the conditions as suggested would give you N * 4 linear equations for N * 4 unknowns (a1..aN, b1..bN, c1..cN, d1..dN) solvable by matrix inversion (numpy).
If the points are on the same vertical line special (but simple) handling is required since the derivative will be “infinite”.
