Fitting a Normal distribution to 1D data

I have a 1 dimensional array. I can compute the “mean” and “standard deviation” of this sample and plot the “Normal distribution” but I have a problem:

I want to plot the data and Normal distribution in the same figure.

I dont know how to plot both the data and the normal distribution.

Any Idea about “Gaussian probability density function in scipy.stats”?

s = np.std(array)
m = np.mean(array)
plt.plot(norm.pdf(array,m,s))

Answers:

Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.

Method 1

You can use matplotlib to plot the histogram and the PDF (as in the link in @MrE’s answer). For fitting and for computing the PDF, you can use scipy.stats.norm, as follows.

import numpy as np
from scipy.stats import norm
import matplotlib.pyplot as plt


# Generate some data for this demonstration.
data = norm.rvs(10.0, 2.5, size=500)

# Fit a normal distribution to the data:
mu, std = norm.fit(data)

# Plot the histogram.
plt.hist(data, bins=25, density=True, alpha=0.6, color='g')

# Plot the PDF.
xmin, xmax = plt.xlim()
x = np.linspace(xmin, xmax, 100)
p = norm.pdf(x, mu, std)
plt.plot(x, p, 'k', linewidth=2)
title = "Fit results: mu = %.2f,  std = %.2f" % (mu, std)
plt.title(title)

plt.show()

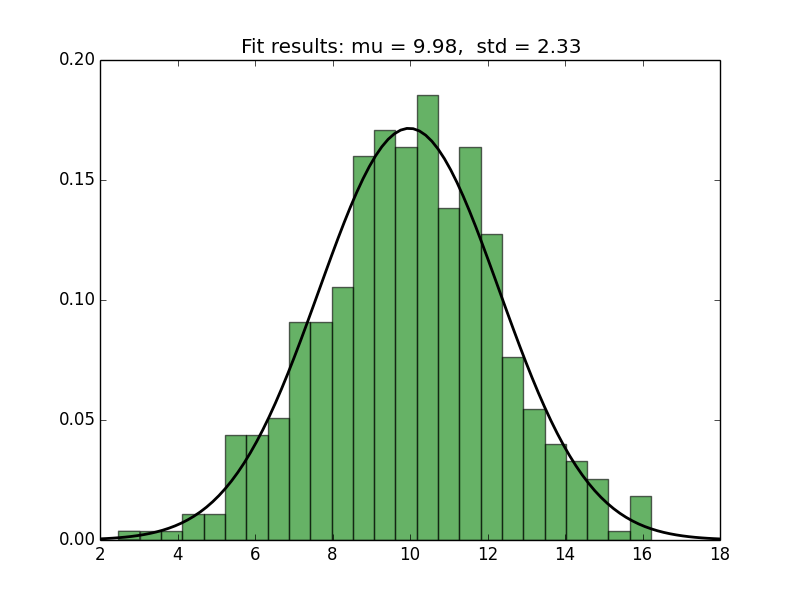

Here’s the plot generated by the script:

Method 2

A simple alternative it to use seaborn (<= 0.11.2):

import numpy as np
import seaborn as sns
from scipy.stats import norm

# Generate simulated data
n_samples = 100
rng = np.random.RandomState(0)
data = rng.standard_normal(n_samples)

# Fit Gaussian distribution and plot
sns.distplot(data, fit=norm, kde=False)

Method 3

To see both the normal distribution and your actual data you should plot your data as a histogram, then draw the probability density function over this. See the example on
https://docs.scipy.org/doc/numpy-1.15.0/reference/generated/numpy.random.normal.html for exactly how to do this.

Method 4

There is a much simpler way to do it using seaborn:

import seaborn as sns
from scipy.stats import norm

data = norm.rvs(5,0.4,size=1000) # you can use a pandas series or a list if you want

sns.distplot(data)
plt.show()

output:

for more information:seaborn.distplot
