How to create a conditional task in Airflow

I would like to create a conditional task in Airflow as described in the schema below. The expected scenario is the following:

Task 1 executes
If Task 1 succeed, then execute Task 2a
Else If Task 1 fails, then execute Task 2b
Finally execute Task 3

All tasks above are SSHExecuteOperator.
I’m guessing I should be using the ShortCircuitOperator and / or XCom to manage the condition but I am not clear on how to implement that. Could you please describe the solution?

Contents hide

Answers:

Method 1

Code Example

EDIT:

Method 2

Answers:

Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.

Method 1

Airflow has a BranchPythonOperator that can be used to express the branching dependency more directly.

The docs describe its use:

The BranchPythonOperator is much like the PythonOperator except that it expects a python_callable that returns a task_id. The task_id returned is followed, and all of the other paths are skipped. The task_id returned by the Python function has to be referencing a task directly downstream from the BranchPythonOperator task.

…

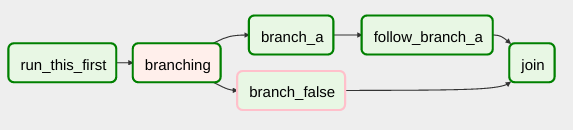

If you want to skip some tasks, keep in mind that you can’t have an empty path, if so make a dummy task.

zow2b

Code Example

def dummy_test():
    return 'branch_a'

A_task = DummyOperator(task_id='branch_a', dag=dag)
B_task = DummyOperator(task_id='branch_false', dag=dag)

branch_task = BranchPythonOperator(
    task_id='branching',
    python_callable=dummy_test,
    dag=dag,
)

branch_task >> A_task
branch_task >> B_task

EDIT:

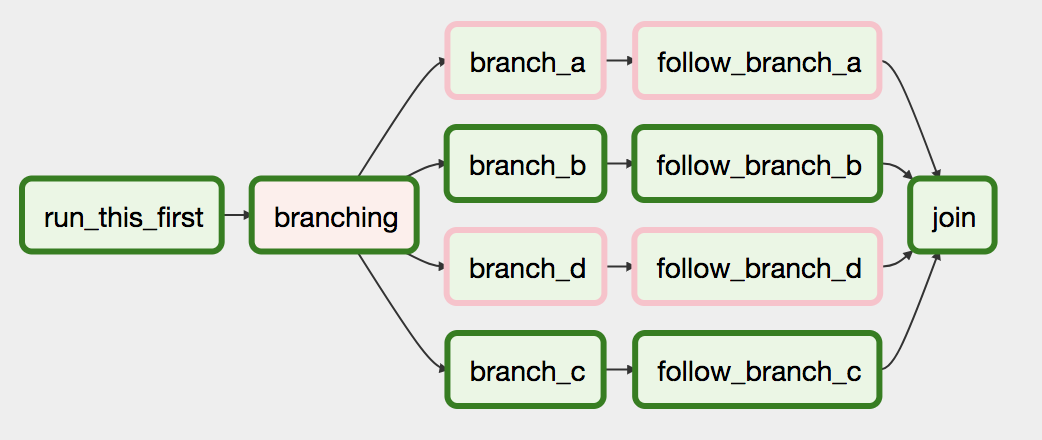

If you’re installing an Airflow version >=1.10.3, you can also return a list of task ids, allowing you to skip multiple downstream paths in a single Operator and don’t use a dummy task before joining.

48800846 3a19e980 ed0b 11e8 89d0 29ceba2ce2fb

Method 2

You have to use airflow trigger rules

All operators have a trigger_rule argument which defines the rule by which the generated task get triggered.

The trigger rule possibilities:

ALL_SUCCESS = 'all_success'
ALL_FAILED = 'all_failed'
ALL_DONE = 'all_done'
ONE_SUCCESS = 'one_success'
ONE_FAILED = 'one_failed'
DUMMY = 'dummy'

Here is the idea to solve your problem:

from airflow.operators.ssh_execute_operator import SSHExecuteOperator
from airflow.utils.trigger_rule import TriggerRule
from airflow.contrib.hooks import SSHHook

sshHook = SSHHook(conn_id=<YOUR CONNECTION ID FROM THE UI>)

task_1 = SSHExecuteOperator(
        task_id='task_1',
        bash_command=<YOUR COMMAND>,
        ssh_hook=sshHook,
        dag=dag)

task_2 = SSHExecuteOperator(
        task_id='conditional_task',
        bash_command=<YOUR COMMAND>,
        ssh_hook=sshHook,
        dag=dag)

task_2a = SSHExecuteOperator(
        task_id='task_2a',
        bash_command=<YOUR COMMAND>,
        trigger_rule=TriggerRule.ALL_SUCCESS,
        ssh_hook=sshHook,
        dag=dag)

task_2b = SSHExecuteOperator(
        task_id='task_2b',
        bash_command=<YOUR COMMAND>,
        trigger_rule=TriggerRule.ALL_FAILED,
        ssh_hook=sshHook,
        dag=dag)

task_3 = SSHExecuteOperator(
        task_id='task_3',
        bash_command=<YOUR COMMAND>,
        trigger_rule=TriggerRule.ONE_SUCCESS,
        ssh_hook=sshHook,
        dag=dag)


task_2.set_upstream(task_1)
task_2a.set_upstream(task_2)
task_2b.set_upstream(task_2)
task_3.set_upstream(task_2a)
task_3.set_upstream(task_2b)
