How to make a section of an image a clickable link

I have a banner on web page, and part of the image there is a graphic of a button box. How do I make just the part where the button is a clickable link such as a href? You can see a sample image below.

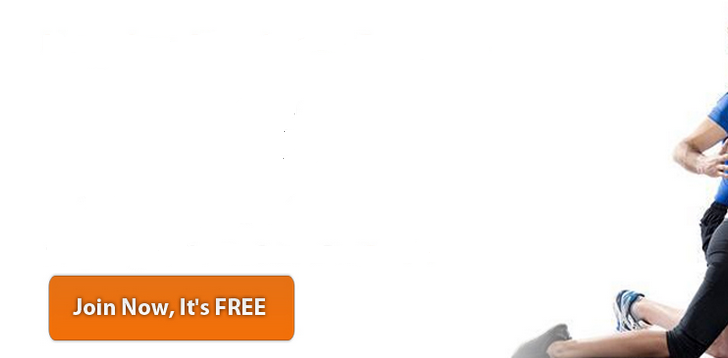

sample banner image with button graphic

In the banner image there is a “Join Now, Its Free” Button graphic. I want to add a link on this box, so when users click on this box on the banner, then it will open the next page. I want to know how I can add a link on just this button. I don’t want to add the <button> tag to it; I just want to add a link based on the area of the “Join Now, Its Free” Button graphic. Anybody have any ideas on how I can add a link on this part of the image area without using the <button> tag.

 <div class="flexslider">

                <ul class="slides" runat="server" id="Ul">
                    <li class="flex-active-slide" style="background: url(&quot;images/slider-bg-1.jpg&quot;) no-repeat scroll 50% 0px transparent;                                               width: 100%; float: left; margin-right: -100%; position: relative; display: list-item;">

                      <div class="container">

                        <div class="sixteen columns contain"></div>

                          <img runat="server" id="imgSlide1" style="top: 1px; right:
       -19px; opacity: 1;" class="item"
           src="images/slider1.png"            data-topimage="7%">
                           <a href="#" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" style="display:block; background:#00F; width:356px; height:66px; position:absolute; left:1px; top:-19px; left: 162px; top: 279px;"></a>


                      </div>


                  </li>
                </ul>

            </div>

            <ul class="flex-direction-nav">

                <li><a class="flex-prev" href="#" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener"><i class="icon-angle-left"></i></a></li>
                <li><a class="flex-next" href="#" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener"><i class="icon-angle-right"></i></a></li>
            </ul>

        </div>

Thank You

Answers:

Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.

Method 1

If you don’t want to make the button a separate image, you can use the <area> tag. This is done by using html similar to this:

<img src="imgsrc" width="imgwidth" height="imgheight" alt="alttext" usemap="#mapname">

<map name="mapname">
    <area shape="rect" coords="see note 1" href="link" rel="nofollow noreferrer noopener" alt="alttext">
</map>

Note 1: The coords=" " attribute must be formatted in this way: coords="x1,y1,x2,y2" where:

x1=top left X coordinate
y1=top left Y coordinate
x2=bottom right X coordinate
y2=bottom right Y coordinate

Note 2: The usemap="#mapname" attribute must include the #.

EDIT:

I looked at your code and added in the <map> and <area> tags where they should be. I also commented out some parts that were either overlapping the image or seemed there for no use.

<div class="flexslider">
    <ul class="slides" runat="server" id="Ul">
        <li class="flex-active-slide" style="background: url(&quot;images/slider-bg-1.jpg&quot;) no-repeat scroll 50% 0px transparent; width: 100%; float: left; margin-right: -100%; position: relative; display: list-item;">
            <div class="container">
                <div class="sixteen columns contain"></div>
                <img runat="server" id="imgSlide1" style="top: 1px; right: -19px; opacity: 1;" class="item" src="./test.png" data-topimage="7%" height="358" width="728" usemap="#imgmap" />
                <map name="imgmap">
                    <area shape="rect" coords="48,341,294,275" href="http://www.example.com/" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener">
                </map>
                <!--<a href="#" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" style="display:block; background:#00F; width:356px; height:66px; position:absolute; left:1px; top:-19px; left: 162px; top: 279px;"></a>-->
            </div>
        </li>
    </ul>
</div>
<!-- <ul class="flex-direction-nav">
    <li><a class="flex-prev" href="#" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener"><i class="icon-angle-left"></i></a></li>
    <li><a class="flex-next" href="#" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener"><i class="icon-angle-right"></i></a></li>
</ul> -->

Notes:

  1. The coord="48,341,294,275" is in reference to your screenshot you posted.
  2. The src="./test.png" is the location and name of the screenshot you posted on my computer.
  3. The href="http://www.example.com/" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" is an example link.

Method 2

You can auto generate Image map from this website for selected area of image. https://www.image-map.net/

Easiest way to execute!

Method 3

by creating an absolute-positioned link inside relative-positioned div..
You need set the link width & height as button dimensions, and left&top coordinates for the left-top corner of button within the wrapping div.

<div style="position:relative">
 <img src="" width="??" height="??" />
 <a href="#" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" rel="nofollow noreferrer noopener" style="display:block; width:247px; height:66px; position:absolute; left: 48px; top: 275px;"></a>
</div>

Method 4

The easiest way is to make the “button image” as a separate image.
Then place it over the main image (using “style=”position: absolute;”.
Assign the URL link to “button image”.
and smile 🙂
