How to set colors for nodes in NetworkX?

I created my graph, everything looks great so far, but I want to update color of my nodes after creation.

My goal is to visualize DFS, I will first show the initial graph and then color nodes step by step as DFS solves the problem.

If anyone is interested, sample code is available on Github

Answers:

Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.

Method 1

All you need is to specify a color map which maps a color to each node and send it to nx.draw function. To clarify, for a 20 node I want to color the first 10 in blue and the rest in green. The code will be as follows:

G = nx.erdos_renyi_graph(20, 0.1)
color_map = []
for node in G:
    if node < 10:
        color_map.append('blue')
    else:
        color_map.append('green')
nx.draw(G, node_color=color_map, with_labels=True)
plt.show()

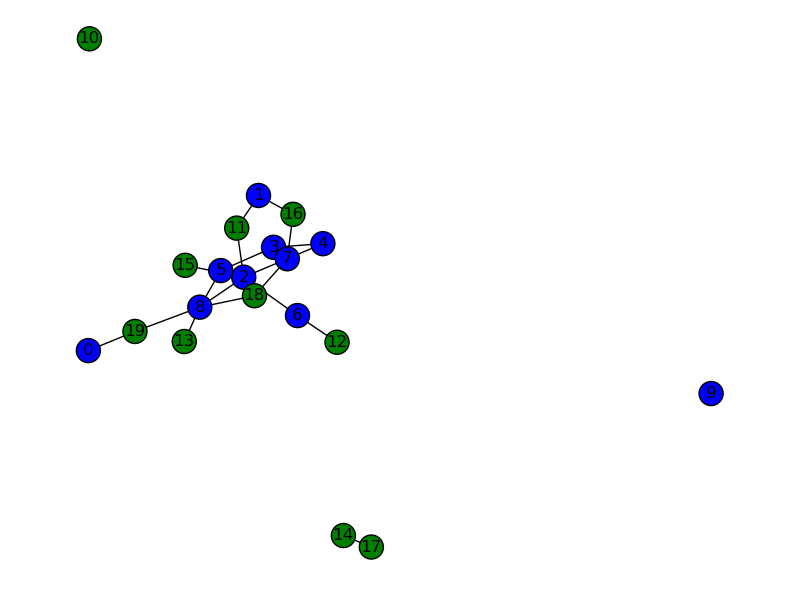

You will find the graph in the attached image.

Method 2

Refer to node_color parameter:

nx.draw_networkx_nodes(G, pos, node_size=200, node_color='#00b4d9')

Method 3

has been answered before, but u can do this as well:

# define color map. user_node = red, book_nodes = green
color_map = ['red' if node == user_id else 'green' for node in G]
graph = nx.draw_networkx(G,pos, node_color=color_map) # node lables
