How to set the default color cycle for all subplots with matplotlib?

How can I set a default set of colors for plots made with matplotlib? I can set a particular color map like this

import numpy as np
import matplotlib.pyplot as plt

fig=plt.figure(i)
ax=plt.gca()
colormap = plt.get_cmap('jet')
ax.set_color_cycle([colormap(k) for k in np.linspace(0, 1, 10)])

but is there some way to set the same set of colors for all plots, including subplots?

Answers:

Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.

Method 1

Sure! Either specify axes.color_cycle in your .matplotlibrc file or set it at runtime using matplotlib.rcParams or matplotlib.rc.

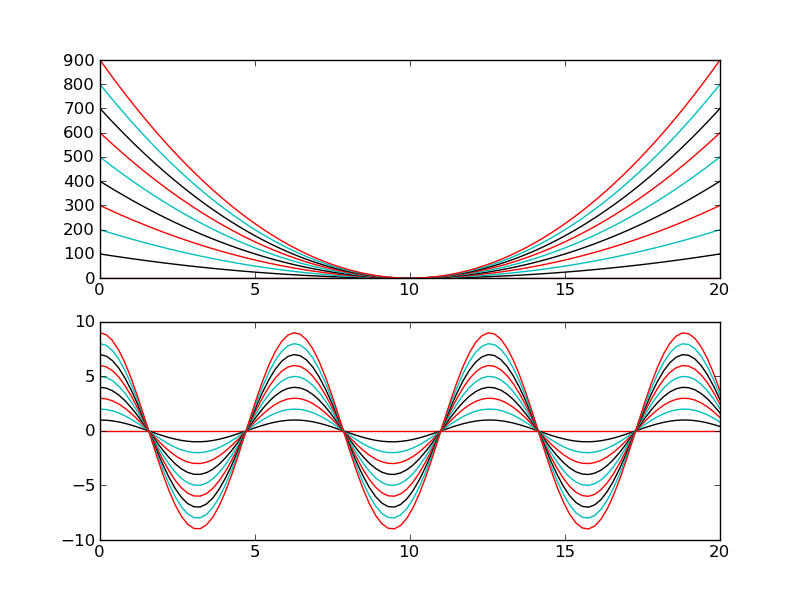

As an example of the latter:

import matplotlib.pyplot as plt
import matplotlib as mpl
import numpy as np

# Set the default color cycle
mpl.rcParams['axes.prop_cycle'] = mpl.cycler(color=["r", "k", "c"])

x = np.linspace(0, 20, 100)

fig, axes = plt.subplots(nrows=2)

for i in range(10):
    axes[0].plot(x, i * (x - 10)**2)

for i in range(10):
    axes[1].plot(x, i * np.cos(x))

plt.show()

Method 2

Starting from matplotlib 1.5, mpl.rcParams[‘axes.color_cycle’] is deprecated. You should use axes.prop_cycle:

import matplotlib as mpl
mpl.rcParams['axes.prop_cycle'] = mpl.cycler(color=["r", "#e94cdc", "0.7"])

Method 3

In the version of 2.1.0, the below works for me, using set_prop_cycle and module cycler

from cycler import cycler
custom_cycler = (cycler(color=['r','b','m','g']))
ax.set_prop_cycle(custom_cycler)

you can add additional line attribute

custom_cycler = (cycler(color=['r','b','m','g']) + cycler(lw=[1,1,1,2]))

‘ax’ comes from ax=plt.axes() or any axes generator
