I’d like to create a colorbar legend for a heatmap, such that the labels are in the center of each discrete color. Example borrowed from here:
import matplotlib.pyplot as plt
import numpy as np
from matplotlib.colors import ListedColormap
#discrete color scheme
cMap = ListedColormap(['white', 'green', 'blue','red'])
#data
np.random.seed(42)
data = np.random.rand(4, 4)
fig, ax = plt.subplots()
heatmap = ax.pcolor(data, cmap=cMap)
#legend
cbar = plt.colorbar(heatmap)
cbar.ax.set_yticklabels(['0','1','2','>3'])
cbar.set_label('# of contacts', rotation=270)
# put the major ticks at the middle of each cell
ax.set_xticks(np.arange(data.shape[1]) + 0.5, minor=False)
ax.set_yticks(np.arange(data.shape[0]) + 0.5, minor=False)
ax.invert_yaxis()
#labels
column_labels = list('ABCD')
row_labels = list('WXYZ')
ax.set_xticklabels(column_labels, minor=False)
ax.set_yticklabels(row_labels, minor=False)
plt.show()

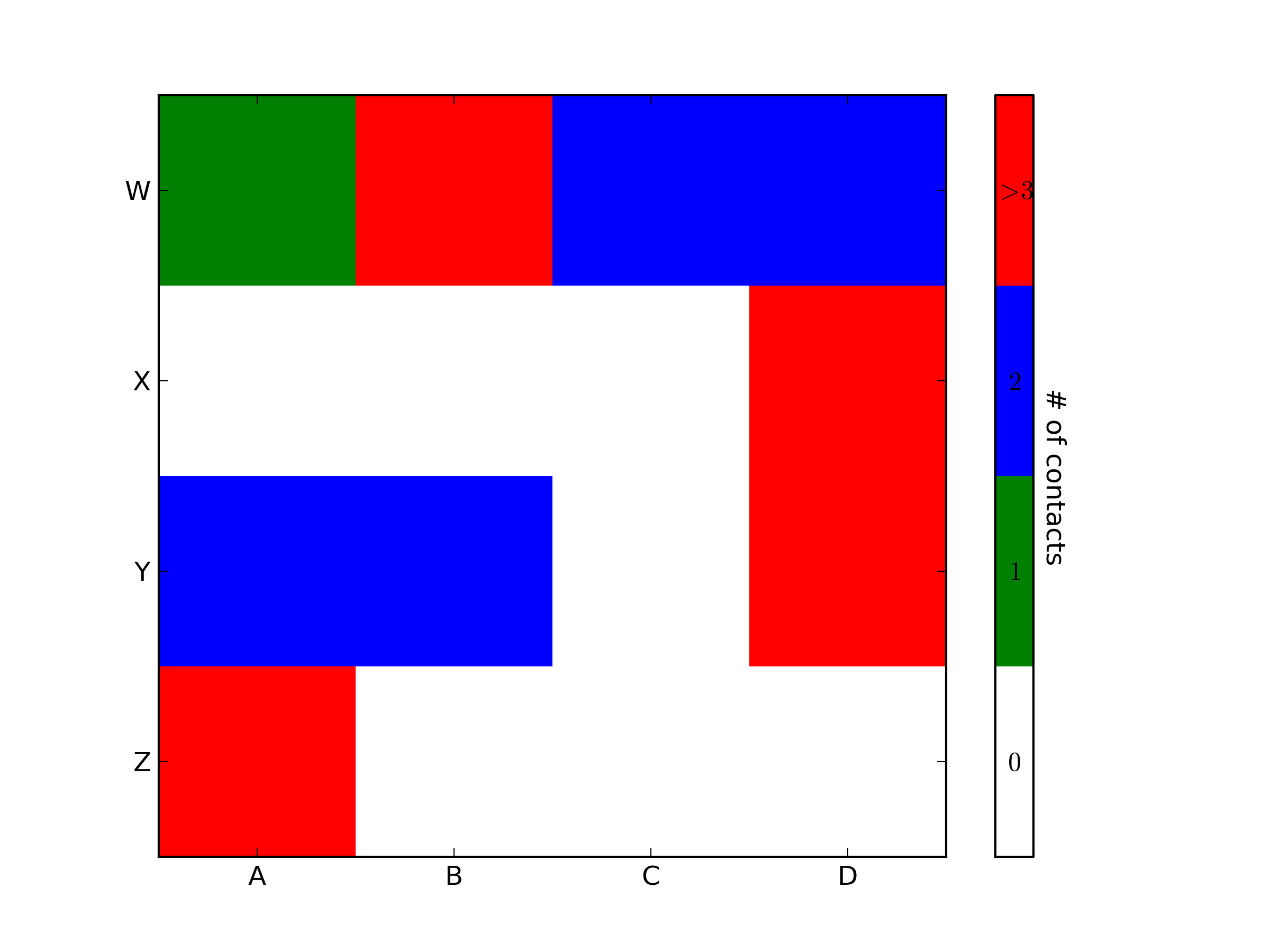

This generates the following plot:
Ideally I’d like to generate a legend bar which has the four colors and for each color, a label in its center: 0,1,2,>3. How can this be achieved?
Answers:
Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.
Method 1
import matplotlib.pyplot as plt
import numpy as np
from matplotlib.colors import ListedColormap
#discrete color scheme
cMap = ListedColormap(['white', 'green', 'blue','red'])
#data
np.random.seed(42)
data = np.random.rand(4, 4)
fig, ax = plt.subplots()
heatmap = ax.pcolor(data, cmap=cMap)
#legend
cbar = plt.colorbar(heatmap)
cbar.ax.get_yaxis().set_ticks([])
for j, lab in enumerate(['$0$','$1$','$2$','$>3$']):
cbar.ax.text(.5, (2 * j + 1) / 8.0, lab, ha='center', va='center')
cbar.ax.get_yaxis().labelpad = 15
cbar.ax.set_ylabel('# of contacts', rotation=270)
# put the major ticks at the middle of each cell
ax.set_xticks(np.arange(data.shape[1]) + 0.5, minor=False)
ax.set_yticks(np.arange(data.shape[0]) + 0.5, minor=False)
ax.invert_yaxis()
#labels
column_labels = list('ABCD')
row_labels = list('WXYZ')
ax.set_xticklabels(column_labels, minor=False)
ax.set_yticklabels(row_labels, minor=False)
plt.show()
You were very close. Once you have a reference to the color bar axis, you can do what ever you want to it, including putting text labels in the middle. You might want to play with the formatting to make it more visible.
Method 2
To add to tacaswell’s answer, the colorbar() function has an optional cax input you can use to pass an axis on which the colorbar should be drawn. If you are using that input, you can directly set a label using that axis.
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable
fig, ax = plt.subplots()
heatmap = ax.imshow(data)
divider = make_axes_locatable(ax)
cax = divider.append_axes('bottom', size='10%', pad=0.6)
cb = fig.colorbar(heatmap, cax=cax, orientation='horizontal')
cax.set_xlabel('data label') # cax == cb.ax
Method 3
This will make you add label and change colorbar’s tick and label size:
clb=plt.colorbar()
clb.ax.tick_params(labelsize=8)
clb.ax.set_title('Your Label',fontsize=8)
This can be also used if you have sublots:
plt.tight_layout()
plt.subplots_adjust(bottom=0.05)
cax = plt.axes([0.1, 0, 0.8, 0.01]) #Left,bottom, length, width
clb=plt.colorbar(cax=cax,orientation="horizontal")
clb.ax.tick_params(labelsize=8)
clb.ax.set_title('Your Label',fontsize=8)
