I have a set of points that make a shape (closed polyline). Now I want to copy/crop all pixels from some image inside this shape, leaving the rest black/transparent. How do I do this?
For example, I have this:
and I want to get this:
Answers:
Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.
Method 1
*edit – updated to work with images that have an alpha channel.
This worked for me:
- Make a mask with all black (all masked)
- Fill a polygon with white in the shape of your ROI
- combine the mask and your image to get the ROI with black everywhere else
You probably just want to keep the image and mask separate for functions that accept masks. However, I believe this does what you specifically asked for:
import cv2
import numpy as np
# original image
# -1 loads as-is so if it will be 3 or 4 channel as the original
image = cv2.imread('image.png', -1)
# mask defaulting to black for 3-channel and transparent for 4-channel
# (of course replace corners with yours)
mask = np.zeros(image.shape, dtype=np.uint8)
roi_corners = np.array([[(10,10), (300,300), (10,300)]], dtype=np.int32)
# fill the ROI so it doesn't get wiped out when the mask is applied
channel_count = image.shape[2] # i.e. 3 or 4 depending on your image
ignore_mask_color = (255,)*channel_count
cv2.fillPoly(mask, roi_corners, ignore_mask_color)
# from Masterfool: use cv2.fillConvexPoly if you know it's convex
# apply the mask
masked_image = cv2.bitwise_and(image, mask)
# save the result
cv2.imwrite('image_masked.png', masked_image)
Method 2
The following code would be helpful for cropping the images and get them in a white background.
import cv2
import numpy as np
# load the image
image_path = 'input image path'
image = cv2.imread(image_path)
# create a mask with white pixels
mask = np.ones(image.shape, dtype=np.uint8)
mask.fill(255)
# points to be cropped
roi_corners = np.array([[(0, 300), (1880, 300), (1880, 400), (0, 400)]], dtype=np.int32)
# fill the ROI into the mask
cv2.fillPoly(mask, roi_corners, 0)
# The mask image
cv2.imwrite('image_masked.png', mask)
# applying th mask to original image
masked_image = cv2.bitwise_or(image, mask)
# The resultant image
cv2.imwrite('new_masked_image.png', masked_image)

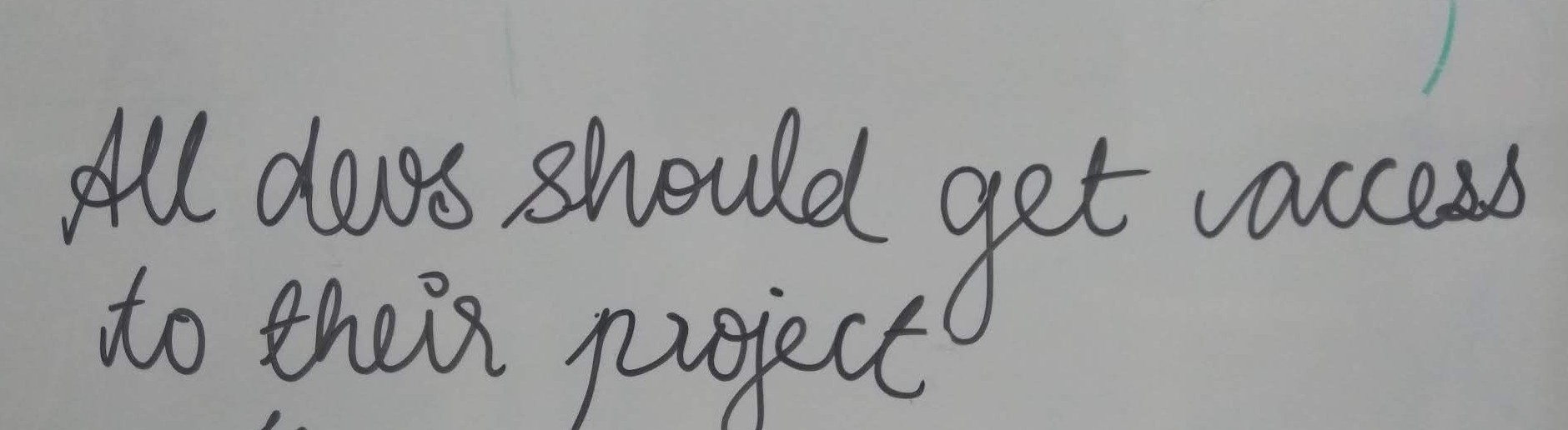

Input Image:
Mask Image:
Resultant output image:
