Positioning the colorbar

I have a matplotlib plot with a colorbar attached. I want to position the colorbar so that it is horizontal, and underneath my plot.

I have almost done this via the following:

plt.colorbar(orientation="horizontal",fraction=0.07,anchor=(1.0,0.0))

But the colorbar is still overlapping with the plot slightly (and the labels of the x axis). I want to move the colorbar further down, but I can’t figure out how to do it.

Answers:

Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.

Method 1

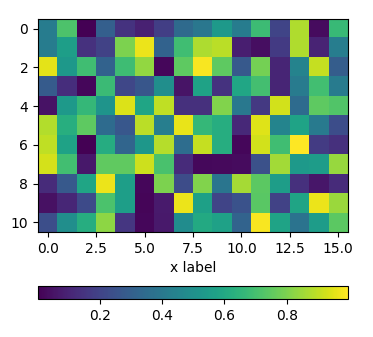

using padding pad

In order to move the colorbar relative to the subplot, one may use the pad argument to fig.colorbar.

import matplotlib.pyplot as plt
import numpy as np; np.random.seed(1)

fig, ax = plt.subplots(figsize=(4,4))
im = ax.imshow(np.random.rand(11,16))
ax.set_xlabel("x label")

fig.colorbar(im, orientation="horizontal", pad=0.2)
plt.show()

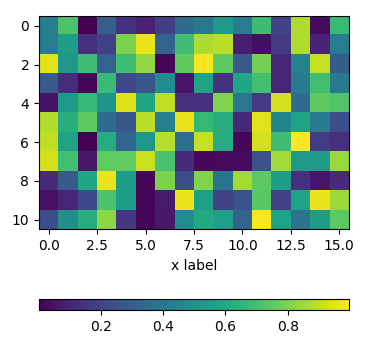

using an axes divider

One can use an instance of make_axes_locatable to divide the axes and create a new axes which is perfectly aligned to the image plot. Again, the pad argument would allow to set the space between the two axes.

import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable
import numpy as np; np.random.seed(1)

fig, ax = plt.subplots(figsize=(4,4))
im = ax.imshow(np.random.rand(11,16))
ax.set_xlabel("x label")

divider = make_axes_locatable(ax)
cax = divider.new_vertical(size="5%", pad=0.7, pack_start=True)
fig.add_axes(cax)
fig.colorbar(im, cax=cax, orientation="horizontal")

plt.show()

using subplots

One can directly create two rows of subplots, one for the image and one for the colorbar. Then, setting the height_ratios as gridspec_kw={"height_ratios":[1, 0.05]} in the figure creation, makes one of the subplots much smaller in height than the other and this small subplot can host the colorbar.

import matplotlib.pyplot as plt
import numpy as np; np.random.seed(1)

fig, (ax, cax) = plt.subplots(nrows=2,figsize=(4,4),
                  gridspec_kw={"height_ratios":[1, 0.05]})
im = ax.imshow(np.random.rand(11,16))
ax.set_xlabel("x label")

fig.colorbar(im, cax=cax, orientation="horizontal")

plt.show()

Method 2

Edit: Updated for matplotlib version >= 3.

Three great ways to do this have already been shared in this answer.

The matplotlib documentation advises to use inset_locator. This would work as follows:

import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1.inset_locator import inset_axes
import numpy as np

rng = np.random.default_rng(1)

fig, ax = plt.subplots(figsize=(4,4))
im = ax.imshow(rng.random((11, 16)))
ax.set_xlabel("x label")

axins = inset_axes(ax,
                    width="100%",
                    height="5%",
                    loc='lower center',
                    borderpad=-5
                   )
fig.colorbar(im, cax=axins, orientation="horizontal")
