Print true color (24-bit) test pattern

How can I test that my terminal / tmux is correctly setup to display truecolor / 24-bit color / 16.8 million colours?

Answers:

Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.

Method 1

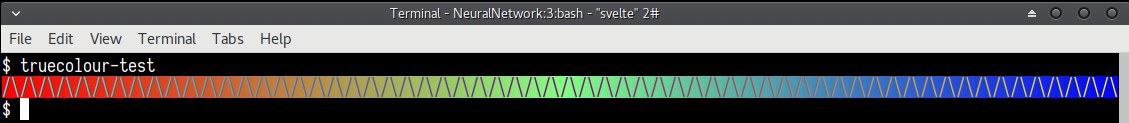

The following script will produce a test pattern like:

You can optionally call it as:

width=1000 truecolor-test

and it will print a pattern of width columns.

#!/bin/bash
# Based on: https://gist.github.com/XVilka/8346728

awk -v term_cols="${width:-$(tput cols || echo 80)}" 'BEGIN{
    s="/\";
    for (colnum = 0; colnum<term_cols; colnum++) {
        r = 255-(colnum*255/term_cols);
        g = (colnum*510/term_cols);
        b = (colnum*255/term_cols);
        if (g>255) g = 510-g;
        printf "33[48;2;%d;%d;%dm", r,g,b;
        printf "33[38;2;%d;%d;%dm", 255-r,255-g,255-b;
        printf "%s33[0m", substr(s,colnum%2+1,1);
    }
    printf "n";
}'

Method 2

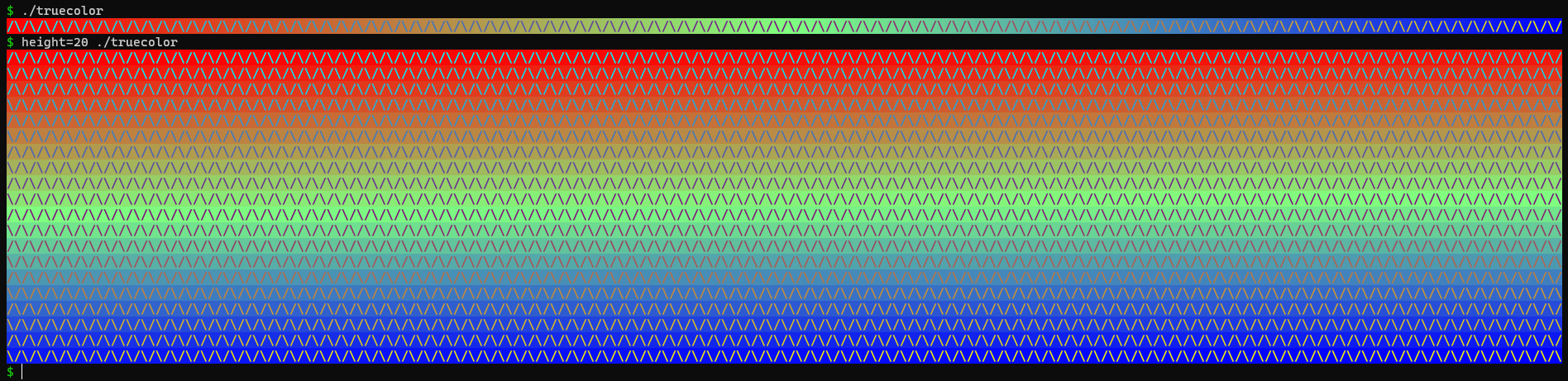

I edited the function from Tom Hale’s answer here to add a option for the amount of lines, which splits up the output. I find it useful as it shows more detailed color.

#!/bin/bash
# Based on: https://gist.github.com/XVilka/8346728 and https://unix.stackexchange.com/a/404415/395213

awk -v term_cols="${width:-$(tput cols || echo 80)}" -v term_lines="${height:-1}" 'BEGIN{
    s="/\";
    total_cols=term_cols*term_lines;
    for (colnum = 0; colnum<total_cols; colnum++) {
        r = 255-(colnum*255/total_cols);
        g = (colnum*510/total_cols);
        b = (colnum*255/total_cols);
        if (g>255) g = 510-g;
        printf "33[48;2;%d;%d;%dm", r,g,b;
        printf "33[38;2;%d;%d;%dm", 255-r,255-g,255-b;
        printf "%s33[0m", substr(s,colnum%2+1,1);
        if (colnum%term_cols==term_cols) printf "n";
    }
    printf "n";
}'
