I have created a program that prints results on command line.
(It is server and it prints log on command line.)
Now, I want to see the same result to GUI .
How can I redirect command line results to GUI?
Please, suggest a trick to easily transform console application to simple GUI.
Note that it should work on Linux and Windows.
Answers:
Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.
Method 1
You could create a script wrapper that runs your command line program as a sub process, then add the output to something like a text widget.
from tkinter import *
import subprocess as sub
p = sub.Popen('./script',stdout=sub.PIPE,stderr=sub.PIPE)
output, errors = p.communicate()
root = Tk()
text = Text(root)
text.pack()
text.insert(END, output)
root.mainloop()
where script is your program. You can obviously print the errors in a different colour, or something like that.
Method 2
To display subprocess’ output in a GUI while it is still running, a portable stdlib-only solution that works on both Python 2 and 3 has to use a background thread:
#!/usr/bin/python
"""
- read output from a subprocess in a background thread
- show the output in the GUI
"""
import sys
from itertools import islice
from subprocess import Popen, PIPE
from textwrap import dedent
from threading import Thread
try:
import Tkinter as tk
from Queue import Queue, Empty
except ImportError:
import tkinter as tk # Python 3
from queue import Queue, Empty # Python 3
def iter_except(function, exception):
"""Works like builtin 2-argument `iter()`, but stops on `exception`."""
try:
while True:
yield function()
except exception:
return
class DisplaySubprocessOutputDemo:
def __init__(self, root):
self.root = root
# start dummy subprocess to generate some output
self.process = Popen([sys.executable, "-u", "-c", dedent("""
import itertools, time
for i in itertools.count():
print("%d.%d" % divmod(i, 10))
time.sleep(0.1)
""")], stdout=PIPE)
# launch thread to read the subprocess output
# (put the subprocess output into the queue in a background thread,
# get output from the queue in the GUI thread.
# Output chain: process.readline -> queue -> label)
q = Queue(maxsize=1024) # limit output buffering (may stall subprocess)
t = Thread(target=self.reader_thread, args=[q])
t.daemon = True # close pipe if GUI process exits
t.start()
# show subprocess' stdout in GUI
self.label = tk.Label(root, text=" ", font=(None, 200))
self.label.pack(ipadx=4, padx=4, ipady=4, pady=4, fill='both')
self.update(q) # start update loop
def reader_thread(self, q):
"""Read subprocess output and put it into the queue."""
try:
with self.process.stdout as pipe:
for line in iter(pipe.readline, b''):
q.put(line)
finally:
q.put(None)
def update(self, q):
"""Update GUI with items from the queue."""
for line in iter_except(q.get_nowait, Empty): # display all content
if line is None:
self.quit()
return
else:
self.label['text'] = line # update GUI
break # display no more than one line per 40 milliseconds
self.root.after(40, self.update, q) # schedule next update
def quit(self):
self.process.kill() # exit subprocess if GUI is closed (zombie!)
self.root.destroy()
root = tk.Tk()
app = DisplaySubprocessOutputDemo(root)
root.protocol("WM_DELETE_WINDOW", app.quit)
# center window
root.eval('tk::PlaceWindow %s center' % root.winfo_pathname(root.winfo_id()))
root.mainloop()
The essence of the solution is:
- put the subprocess output into the queue in a background thread
- get the output from the queue in the GUI thread.
i.e., call process.readline() in the background thread -> queue -> update GUI label in the main thread. Related kill-process.py (no polling — a less portable solution that uses event_generate in a background thread).
Method 3
Redirecting stdout to a write() method that updates your gui is one way to go, and probably the quickest – although running a subprocess is probably a more elegant solution.
Only redirect stderr once you’re really confident it’s up and working, though!
Example implimentation (gui file and test script):
test_gui.py:
from Tkinter import *
import sys
sys.path.append("/path/to/script/file/directory/")
class App(Frame):
def run_script(self):
sys.stdout = self
## sys.stderr = self
try:
del(sys.modules["test_script"])
except:
## Yeah, it's a real ugly solution...
pass
import test_script
test_script.HelloWorld()
sys.stdout = sys.__stdout__
## sys.stderr = __stderr__
def build_widgets(self):
self.text1 = Text(self)
self.text1.pack(side=TOP)
self.button = Button(self)
self.button["text"] = "Trigger script"
self.button["command"] = self.run_script
self.button.pack(side=TOP)
def write(self, txt):
self.text1.insert(INSERT, txt)
def __init__(self, master=None):
Frame.__init__(self, master)
self.pack()
self.build_widgets()
root = Tk()
app = App(master = root)
app.mainloop()
test_script.py:
print "Hello world!"
def HelloWorld():
print "HelloWorldFromDef!"
Method 4
Sorry for my bad English. I actually, used a different way to print Command Prompt output into my new Automation tool.
Please find those steps below.
1> Create a Bat File & redirect its output to a LOG file.
Command Prompt command: tasklist /svc
2> Make read that file with Python 3.x.
`processedFile = open(‘D:LOGtaskLog.txt’, ‘r’)
3> The Finale step.
ttk.Label(Tab4, text=[ProcessFile.read()]).place(x=0, y=27)
**Hence please be informed that, I have not include scrollbar into this code yet.

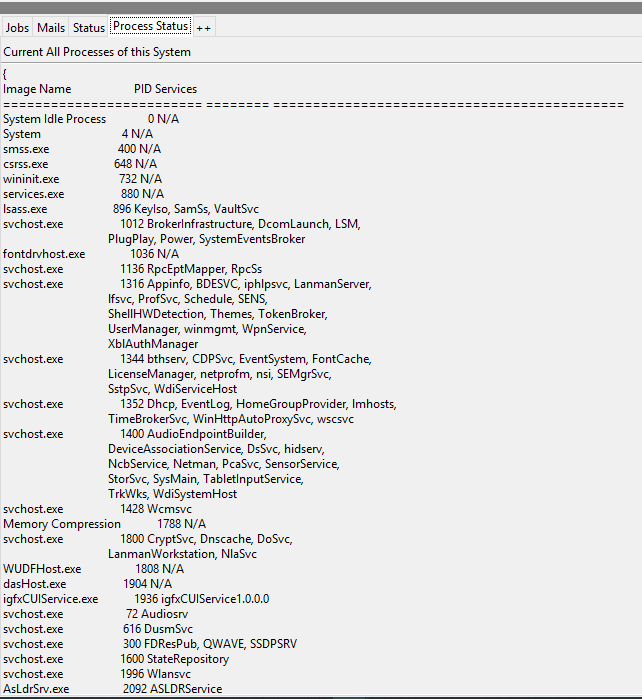

Posting Screenshot:
