Unable to find ASP Repeater child control from ASP Timer tick event

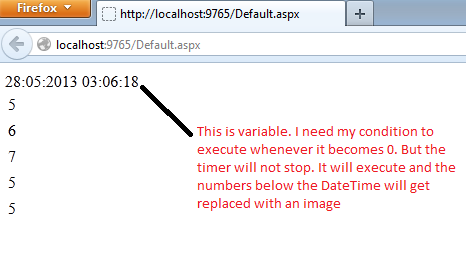

See the Image below:

Scenario

I have a repeater control bearing Id “rpt1” ,inside the ItemTemplate of which I have a span control whose Id is “abc“, which is currently displaying a number. I also have a ticker above the repeater in format dd-MM-yyyy hh:mm:ss (27-05-2013 11:24:36), made up of ASP:Timer and ASP:UpdatePanel.

Requirement

What i need is that whenever my second part of the timer reaches 00, I would like to change the content of span from number to some image.

Code

ASPX:

 <form id="form1" runat="server">
    <asp:ScriptManager ID="scr" runat="server">
    </asp:ScriptManager>
    <asp:Timer ID="timer" runat="server" Interval="1000" OnTick="timer_Tick">
    </asp:Timer>
    <asp:UpdatePanel runat="server" ID="up1" UpdateMode="Always">
        <ContentTemplate>
            <asp:Label runat="server" ID="lblNum"></asp:Label>
        </ContentTemplate>
        <Triggers>
        <asp:AsyncPostBackTrigger ControlID="timer" EventName="Tick" />
        </Triggers>
    </asp:UpdatePanel>
    <asp:Repeater runat="server" ID="rpt1">
        <ItemTemplate>
            <table>
                <tr>
                    <td>
                        <span id="abc" runat="server">
                            <%#Eval("Number") %></span>
                    </td>
                </tr>
            </table>
        </ItemTemplate>
    </asp:Repeater>
    </form>

CS:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.HtmlControls;
using System.Threading;

namespace WebTest
{
    public partial class Default : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
            if (!IsPostBack)
                BindList();
        }

        protected void timer_Tick(object sender, EventArgs e)
        {
            lblNum.Text = string.Format("{0:dd:MM:yyyy hh:mm:ss}",DateTime.Now);

            if (DateTime.Now.Second == 30)
            {
                Thread t = new Thread(DisplayImages);
                t.Start();
                t.Suspend();
                t.Join();

            }
        }

        private void BindList()
        {
            var list = new List<Numbers>();
            list.Add(new Numbers() { Number = 5 });
            list.Add(new Numbers() { Number = 6 });
            list.Add(new Numbers() { Number = 7 });
             list.Add( new Numbers() { Number = 5 });
             list.Add(new Numbers() { Number = 5 });

            rpt1.DataSource = list;
            rpt1.DataBind();
        }

        private void DisplayImages()
        {

            foreach (RepeaterItem item in rpt1.Items)
            {
                if (item.ItemType == ListItemType.Item || item.ItemType == ListItemType.AlternatingItem)
                {
                    var checkBox = ((HtmlGenericControl)(item.FindControl("abc")));

                    checkBox.InnerHtml = "<img src='https://pra.aps.org/sites/pra.test.ridge.aps.org/themes/PRA/graphics/button_go.gif'/>";
                }
            }
        }
    }

    public class Numbers
    {
        public int Number { get; set; }
    }
}

Earlier the code was executing on single thread. Now, I tried keeping the threads apart but no avail. I think reloading page each time is main issue. Is it possible that I can only refresh the timer part not the entire page.

Answers:

Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.

Method 1

All you have to do is:

1. In the ASPX code, move the REPEATER into the UpdatePanel.ContentTemplate, juste below lblNum.
2. In the C# code, remove the line “t.Suspend();”.

I hope this will help you.

CODE

ASPX:

<form id="form1" runat="server">
<asp:ScriptManager ID="scr" runat="server">
</asp:ScriptManager>
<asp:Timer ID="timer" runat="server" Interval="1000" OnTick="timer_Tick">
</asp:Timer>
<asp:UpdatePanel runat="server" ID="up1" UpdateMode="Always">
    <ContentTemplate>
        <asp:Label runat="server" ID="lblNum"></asp:Label>
        <asp:Repeater runat="server" ID="rpt1">
    <ItemTemplate>
        <table>
            <tr>
                <td>
                    <span id="abc" runat="server">
                        <%#Eval("Number") %>
                    </span>
                </td>
            </tr>
        </table>
    </ItemTemplate>
</asp:Repeater>
    </ContentTemplate>
    <Triggers>
    <asp:AsyncPostBackTrigger ControlID="timer" EventName="Tick" />
    </Triggers>
</asp:UpdatePanel>

CS:

    protected void timer_Tick(object sender, EventArgs e)
    {
        lblNum.Text = string.Format("{0:dd:MM:yyyy hh:mm:ss}", DateTime.Now);

        if (DateTime.Now.Second == 30)
        {
            Thread t = new Thread(DisplayImages);
            t.Start();
            //t.Suspend();
            t.Join();
        }
    }
