How can I get from a plot in Python an exact value on y – axis? I have two arrays vertical_data and gradient(temperature_data) and I plotted them as:
plt.plot(gradient(temperature_data),vertical_data) plt.show()

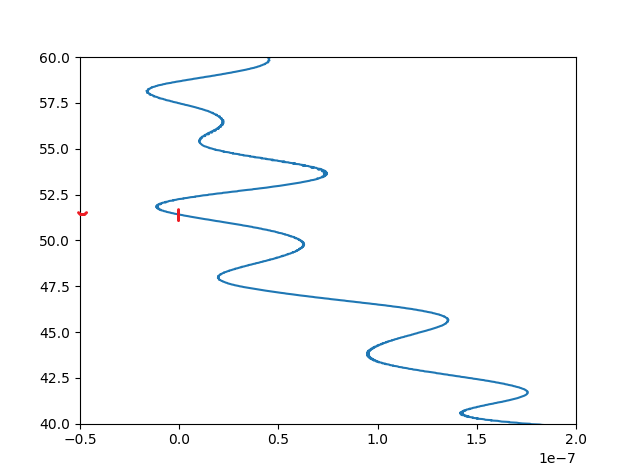

Plot shown here:
I need the zero value but it is not exactly zero, it’s a float.
Answers:
Thank you for visiting the Q&A section on Magenaut. Please note that all the answers may not help you solve the issue immediately. So please treat them as advisements. If you found the post helpful (or not), leave a comment & I’ll get back to you as soon as possible.
Method 1
I did not find a good answer to the question of how to find the roots or zeros of a numpy array, so here is a solution, using simple linear interpolation.
import numpy as np
N = 750
x = .4+np.sort(np.random.rand(N))*3.5
y = (x-4)*np.cos(x*9.)*np.cos(x*6+0.05)+0.1
def find_roots(x,y):
s = np.abs(np.diff(np.sign(y))).astype(bool)
return x[:-1][s] + np.diff(x)[s]/(np.abs(y[1:][s]/y[:-1][s])+1)
z = find_roots(x,y)

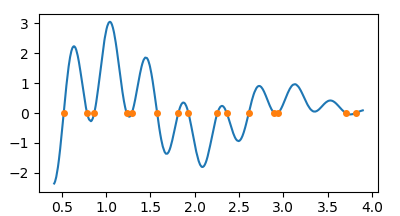

import matplotlib.pyplot as plt
plt.plot(x,y)
plt.plot(z, np.zeros(len(z)), marker="o", ls="", ms=4)
plt.show()

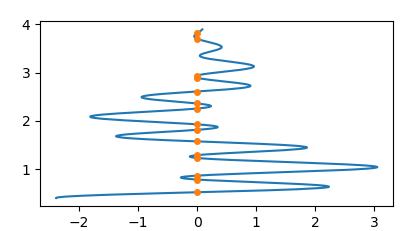

Of course you can invert the roles of x and y to get
plt.plot(y,x) plt.plot(np.zeros(len(z)),z, marker="o", ls="", ms=4)

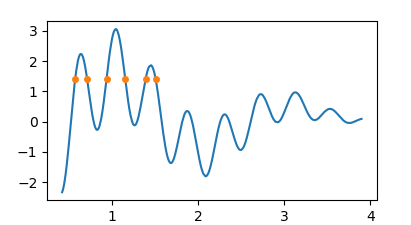

Because people where asking how to get the intercepts at non-zero values y0, note that one may simply find the zeros of y-y0 then.
y0 = 1.4 z = find_roots(x,y-y0) # ... plt.plot(z, np.zeros(len(z))+y0)

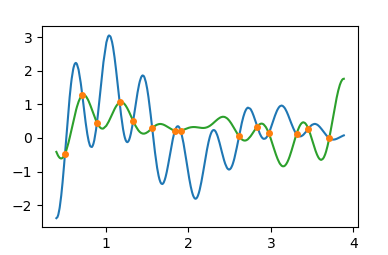

People were also asking how to get the intersection between two curves. In that case it’s again about finding the roots of the difference between the two, e.g.
x = .4 + np.sort(np.random.rand(N)) * 3.5 y1 = (x - 4) * np.cos(x * 9.) * np.cos(x * 6 + 0.05) + 0.1 y2 = (x - 2) * np.cos(x * 8.) * np.cos(x * 5 + 0.03) + 0.3 z = find_roots(x,y2-y1) plt.plot(x,y1) plt.plot(x,y2, color="C2") plt.plot(z, np.interp(z, x, y1), marker="o", ls="", ms=4, color="C1")
